LTD-D Series 60L capacity disc type horizontal sand mill / bead mill for water based and solvent based products
1. Application:
Suitable to grind low or medium viscosity products with fineness 15-5μm.
Titanium dioxide Metallic paint Marine paint
Automotive paint Coatings Anti-corrosion paint
Furniture paint Printing ink Pesticides
Carbon Black Pigment/Dye/Colorant Rubber
Industrial paint Electrophoretic paint Leather paint
2. Machine Configuration:
Grinding discs, wear-resistant alloy steel material
Rotor material wear-resistant alloy steel material
Outer chamber material:carbon steel with Chrome plated/SS304
Inner tube material:wear-resistant steel steel
Rotor rated speed 1020RPM
Double-end mechanical seal,Burgmann brand
1”ARO pneumatic diagram pump,with pump delivery 0-17L/min
Fully explosion proof type with explosion proof electrical control panel
Solvent-resistant discharge inlet and outlet pipes
Discharge separator gap 0.5mm,suitable for 80% zirconia beads 1.8-2.0mm
Spare parts:Solvent resistant feeding and discharge pipe,power wire and tools.
3. Technical parameters
| Model | Chamber capacity(L) | Motor power(Kw) | Production capacity(L/h) | Zirconia beads size(mm) | Weight(Kg) | Overall dimensions(mm) |
| LTD05D | 5 | 7.5 | 20-150 | 1.0-2.5 | 500 | 900×750×1550 |
| LTD10D | 10 | 11 | 30-200 | 1.0-2.5 | 1000 | 950×800×1550 |
| LTD15D | 15 | 15 | 35-400 | 1.0-2.5 | 1000 | 1180×900×1600 |
| LTD20D | 20 | 18.5 | 50-600 | 1.0-2.5 | 1100 | 1350×900×1700 |
| LTD30D | 30 | 30 | 150-1000 | 1.0-2.5 | 1300 | 1700×1050×1850 |
| LTD50D | 50 | 37/45 | 200-1200 | 1.0-2.5 | 1600 | 1750×1050×1950 |
| LTD60D | 60 | 45 | 250-1500 | 1.0-2.5 | 1700 | 1950×1050×1950 |
| LTD100D | 100 | 55 | 350-2400 | 1.0-2.5 | 2800 | 2240×1000×2200 |
| LTD150D | 150 | 75 | 600-3500 | 1.0-2.5 | 3200 | 2800×1000×2200 |
| LTD200D | 200 | 95 | 800-4500 | 1.0-2.5 | 3800 | 2950×1000×2200 |
| LTD300D | 300 | 110 | 1000-9000 | 1.0-2.5 | 4500 | 3100×1200×2500 |
| LTD500D | 500 | 160 | 1500-12000 | 1.0-2.5 | 6500 | 3800×1400×2800 |
| LTD1000D | 1000 | 400 | 12000-15000 | 1.0-2.5 | 11000 | 4400×1600×2850 |
4. Grinding process
5. Structure classification of Horizontal Sand Mill

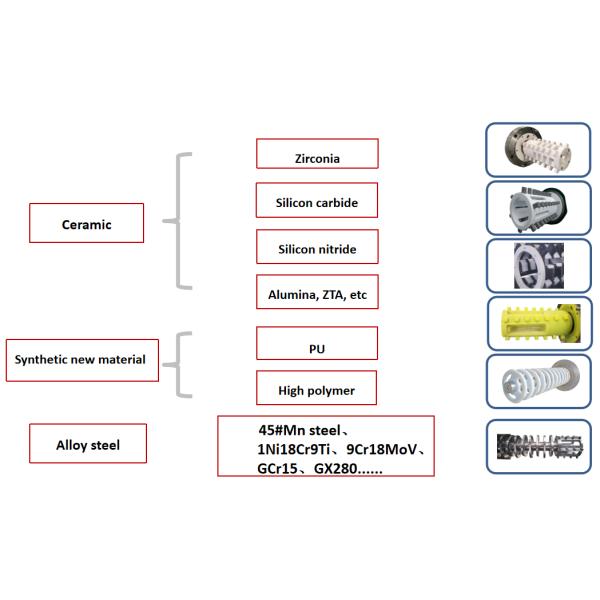

Material classification of Horizontal Sand Mill Spare Parts
Real photos:
4.Machine videos
Applications:
Our factory
Our certificates
Customers case
Support and Services:
Product Technical Support and Services:
- Comprehensive technical support for installation, operation, and maintenance
- Troubleshooting assistance for any issues or malfunctions
- Guidance on optimizing the performance of the equipment
- Training programs for operators to ensure proper usage and maximize efficiency
Packing and Shipping:
Product Packaging:
The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.
Shipping:
Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.
FAQ:
Q: What is a sand mill/bead mill?
A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.
Q: What are the typical applications of a sand mill/bead mill?
A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.
Q: How does a sand mill/bead mill work?
A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.
Q: What are the advantages of using a sand mill/bead mill?
A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.
Q: How to choose the right sand mill/bead mill for my application?
A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
